Installing / Removing the PPS Spacers

The PPS Spacers are designed to be used in conjunction with the Head Media Guide. These items are normally pre-installed in the printer.

With the PPS spacers installed and the clamshell closed; the spacers make contact with both ends of the printhead cartridge, which pushes the Platen down a small amount. This creates a larger gap between the printhead and Platen; thereby reducing the chance of contact between the media and the printhead.

Install the PPS Spacers if you are printing on media that is uneven (i.e. envelopes).

Remove the PPS Spacers if you are primarily printing thin flat stock (sheet stock).

Do NOT use the PPS spacers without the Head Media Guide.

Items Needed for Install/Removal: Nitrile powder-free gloves, distilled water and lint free cloth. Small, flat-bladed screw driver.

Install:

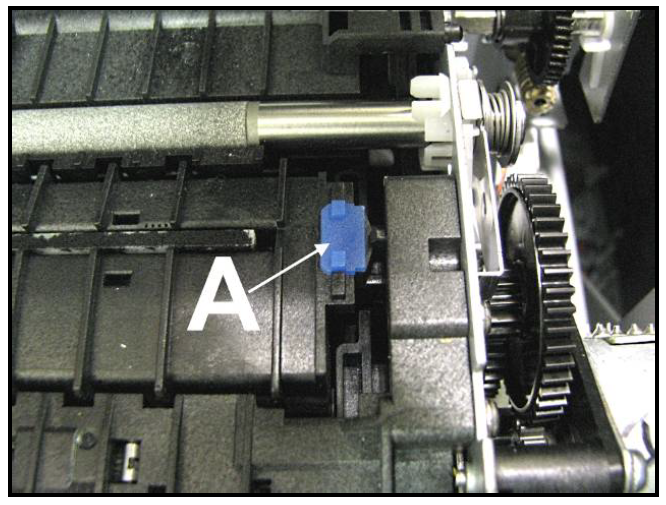

1.  Insert the smaller PPS Spacer into the hole in the Platen [A]; as shown.

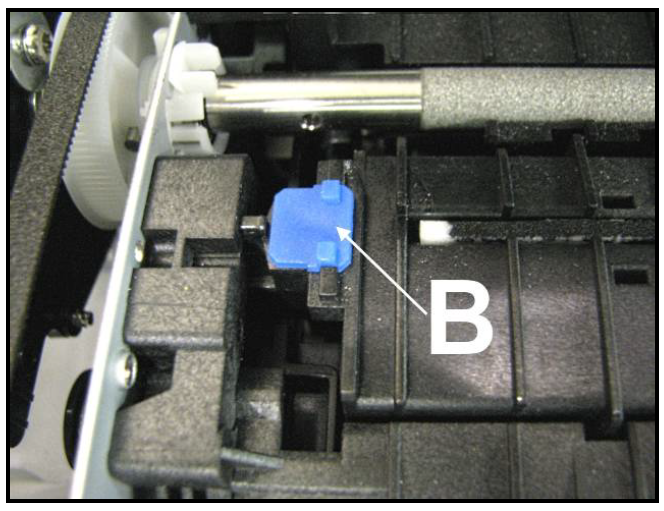

2.  Insert the larger PPS Spacer into the hole in the Platen [B]; as shown.

3.  Make sure the PPS Spacers are fully inserted.

4.  Wipe the Printhead Nozzles end to end using distilled water and a damp lint-free cloth. Carefully close and latch the Clamshell. Close the Top Cover.


Remove:

1.  Carefully pull out the smaller PPS

Spacer from the hole in Platen [A]. You may need to use a small, flat-bladed screw driver to get under the spacer, to lift it up.

2.  Carefully pull out the larger PPS Spacer from the hole in the Platen [B].

3.  Wipe the Printhead Nozzles end to end using distilled water and a damp lint-free cloth. Carefully close and latch the Clamshell. Close the Top Cover.

TECH NOTE: When replacing the Service Station; Do NOT discard the two PPS Spacers. Remove and save or reuse in new Service Station.

Additional things that may help reduce scuff marks and image smudging/smearing:
- Check to be sure the Head Media Guide is properly installed. Try adding/removing “PPS Spacers”.
- Check to be sure the Head Media Guide, printhead, lip of cap (capping station) and other surfaces are clean. Clean using distilled water and a lint free cloth.
- Try feeding the media in a different orientation. Rotate piece 90, 180, 270 degrees.
- Try to use media that is flat (not warped, bowed or bent). Be sure flaps are folded crisply.
